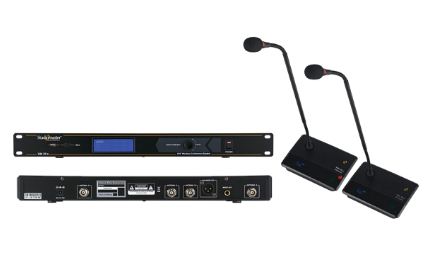

Studiomaster Vak 30 Conference System

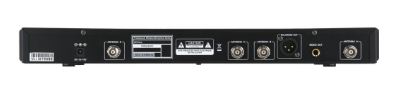

VaK 30.s Main Controller
- Professional wireless conference system with two operating modes: Chairman and FIFO.
- Highly-flexible and customizable system supporting up to 50 units.
- NOM (Number of Open Microphones) - Supports upto 3 active units.
- 20 UHF channels.
- Built-in USB MP3 recorder with sequential file saving and storage.
- Operating distance of up to 100 ft (line of sight).
- Balanced XLR and ¼” jack audio output.
- User-friendly interface with LCD display.
- Easy-to-use, no operator required.
- Quick plug-and-play installation.
Ultra Functional Operating Modes
Chairman Mode: In this mode, only the chairman can communicate. All other delegates are muted.
FIFO Mode: It is the order in which the participants enter the discussion and the order in which they are switched OFF. When a new ‘Speak’ request comes in, the first entered MIC shuts off or is muted.
Record Meetings On-the-Go!
The VaK 30 system features a built-in USB MP3 recorder to capture the proceedings of the meeting. The files are saved in a sequential order on to external flash-based storage devices (pen/thumb drives).
Now say goodbye to taking minutes of the meeting and focus only on the discussion!

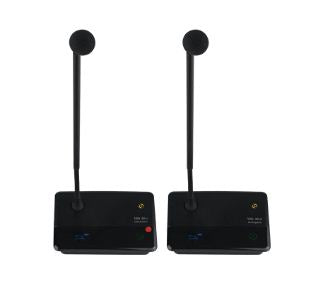

VaK 30.c (Chairman) and VaK 30.d (Delegate)
- Detachable and flexible 21” 2-bend gooseneck microphone with base.
- High-quality microphone capsule ensures great voice reproduction.
- LED ring on the microphone to indicate 'Mic Active' status.
- IIIuminated ON/OFF talk switch.
- LED screen displays ON/OFF status, battery level, connected MIC number, selected channel number and unit ID.
- Priority switch on the chairman unit to override all delegates during a discussion.
- Power up the delegate and chairman units using either batteries or the supplied adaptor.
- Fully wireless for flexibility in fixed and mobile applications.
