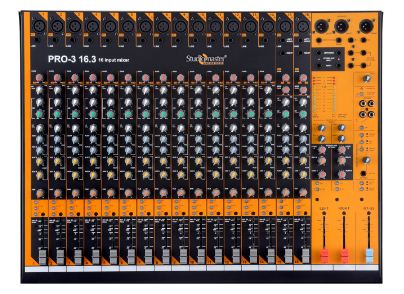

Studiomaster Pro 16.3 Mixer (16 Channel)
- 16 Mic/14 Line + 2 Mono/Stereo
- Balanced Mic/Line inputs.
- Monster (Mono-Stereo) Inputs for full flexibility.
- Gain control with 3 Band EQ & mid-sweep on each channel.
- 4 Aux Send/level AB & Aux 4 AB returns on board.
- L/R Pan/Bal control & Signal/Peak led per channel.
- Master (L-R), Group (G1-G2), PFL Self illuminated switches per channel.
- Aux 1/2 - Pre fader & Aux 3/4 - Post fader.
- Group switchable to Main Mix/Mono or both.
- Headphone & bargraph monitoring by selection of Mix/Group & Mono/PFL.
- Stereo CD In/Record Out & ¼” Headphone out.
- Balanced XLR Master Output.
- Separate Mono Output with Level Control on Balanced XLR connector.
- Switchable +48V Phantom on all channels except first 6 channels.
- 12 Segments LED Meter.
- Operates on wide mains supply variation 150V-240V.
