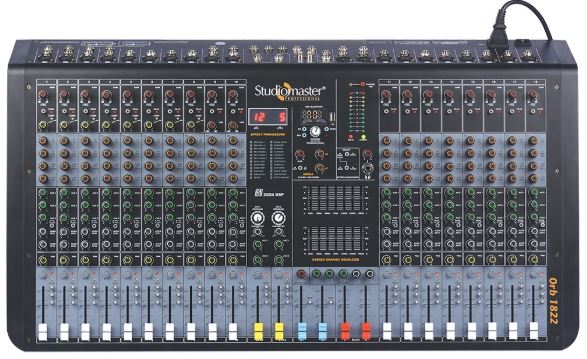

Studiomaster ORB 1822 Mixer Premium mixer with Bluetooth, Recording, Graphic Equilizer, Dual Echo and One knob Compressor


  • Rs. 40,799
    Unit price per
  • Save Rs. 3,761
Tax included. Shipping calculated at checkout.

•  Professional audio mixing consoles with 18 mic / 20 line inputs.

•  MON:Ster (mono-stereo) inputs for full flexibility.

•  One Knob Compressor on channels 1-8.

•  Ultra low-noise preamps with wide headroom and dynamic range.

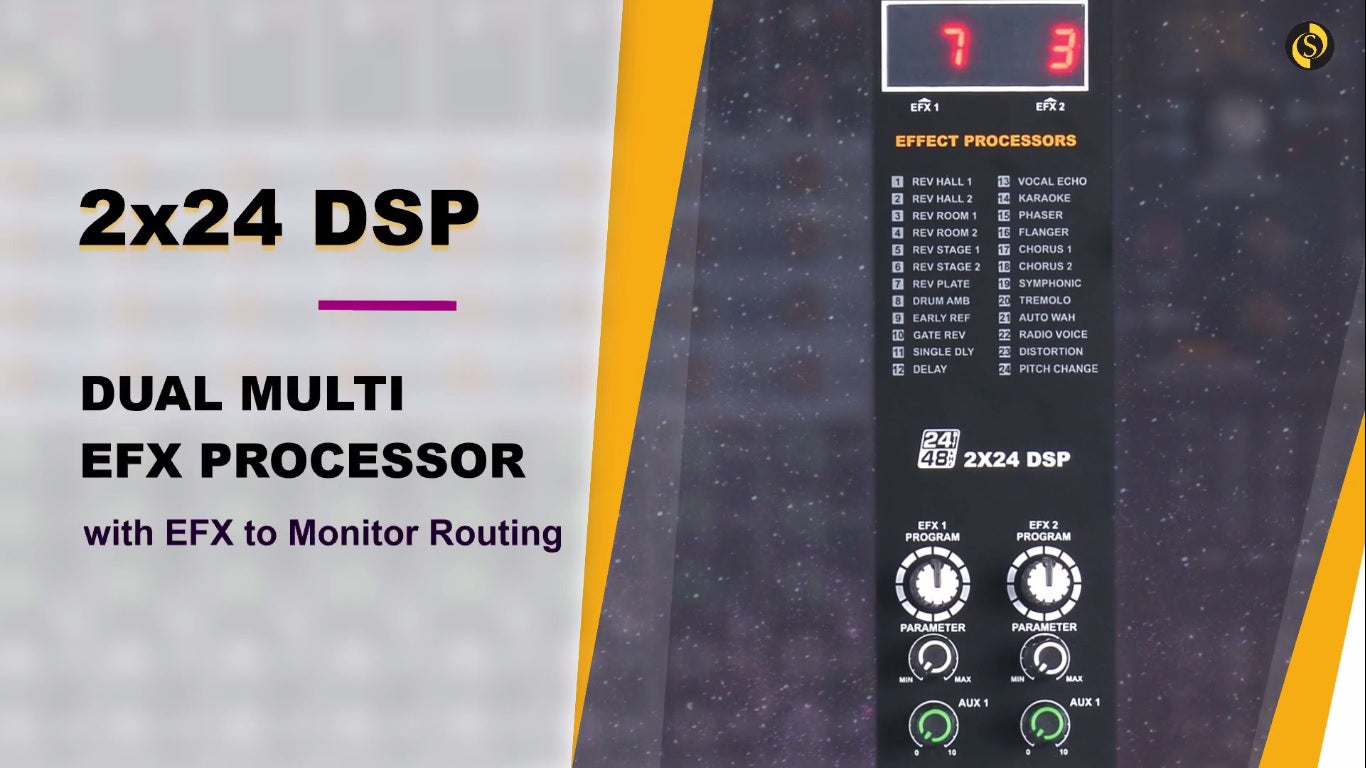

•  Dual multi-EFX processor with 24 DSP presets and editable parameters.

•  Provisions to route EFX to monitor via Aux 1 and Aux 2.

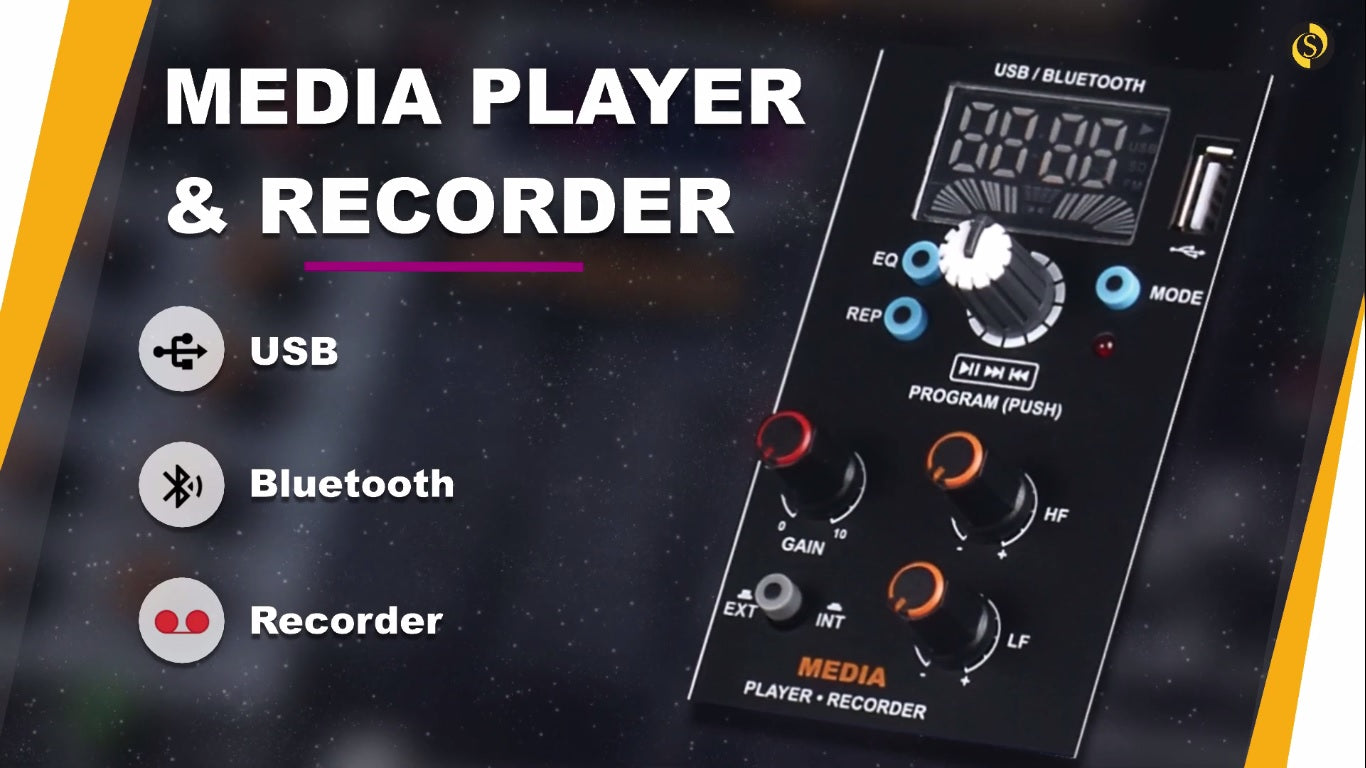

•  Built-in USB MP3 media player and recorder with Bluetooth.

•  Level control, 2-band EQ with internal/external media input selection.

•  75Hz low cut on mono channels.

•  4-band EQ on all inputs.

•  5 Aux sends - Aux 1-3 (with pre/post selection) and Aux 4-5 (post only).

•  Stereo AUX returns.

•  Balanced XLR and ¼” jack main outputs.

•  2 sub groups with individual ¼” outputs.

•  Insert (send/return) on first 4 mono channels and main output.

•  Mute, solo, group (G1-G2) and main (L-R) routing per channel.

•  Peak, comp, mute and solo LEDs per channel.

•  Stereo RCA input and record output.

•  Headphone output with level control.

•  Globally switched +48V Phantom power supply.

•  Responsive 60mm faders.

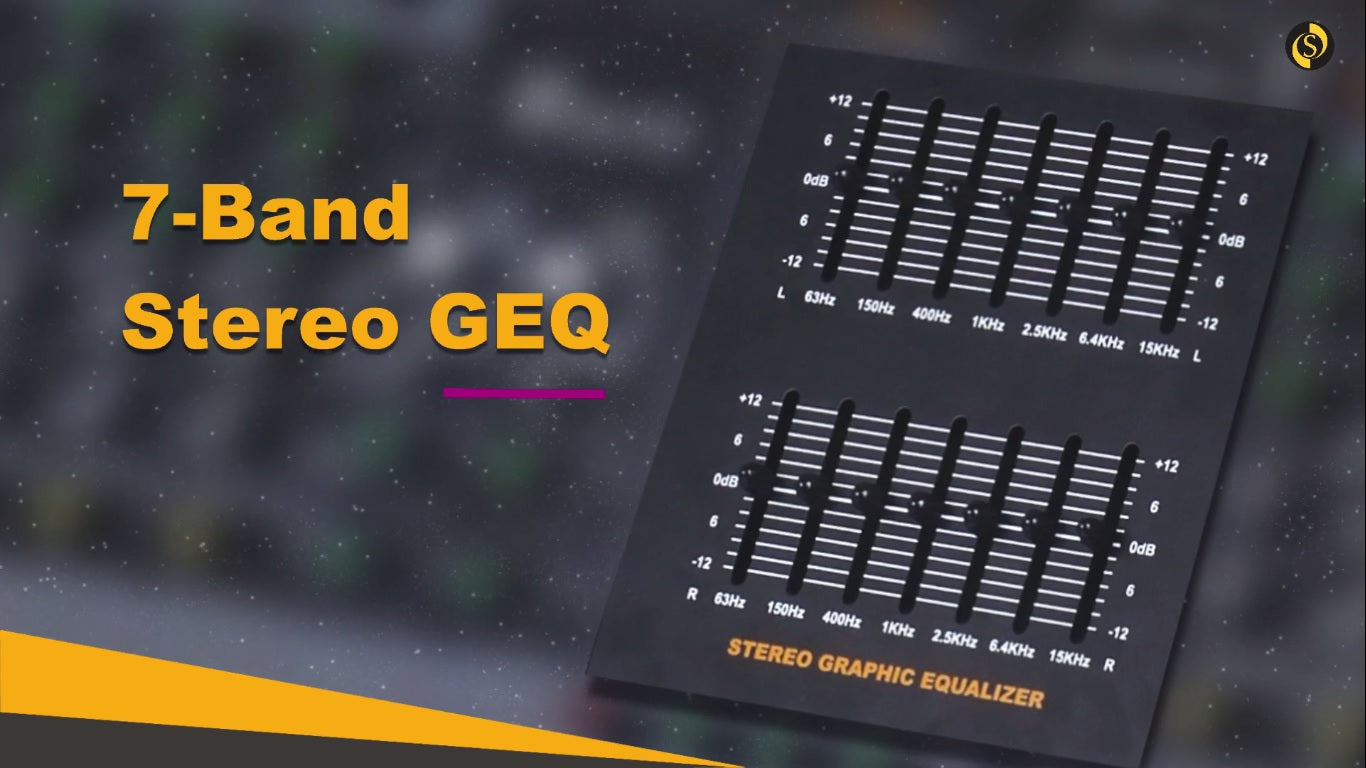

•  7-band stereo graphic equalizer on main output.

•  Dual 10-segment LED meter for main, group and solo outputs.

•  Ergonomic angled-design for better visibility.

•  Clutter-free rear panel input and output connectivity.
