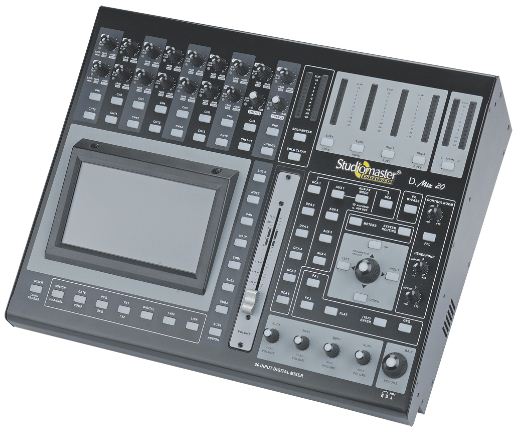

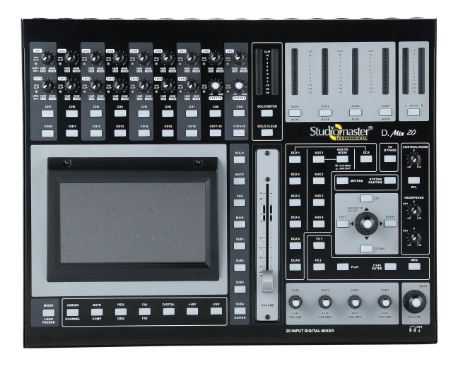

Studiomaster D.MIX 20 Mixer (16 Channel)
- 16 mono Input channels with assignable controls.
- 8 Channels Inserts.
- 2 Stereo input channels.
- 1 USB audio channels.
- Full duplex USB port (allows for simultaneous recording & reproduction) for reproduction of digital audio data from a PC & recording mixing onto a PC..
- 2 integrated DSP’s with EQ, Noise Gate, Compressor / Limiter & Delay.
- 4 Aux Send outs & 4 Subgroup outs or 8 Aux outputs.
- 6 DCA groups.
- 100mm motor-driven fader.
- 24 bits/48kHz sampling rate.
- User definable presets.
- +48V Phantom power.
- LCD touch screen for settings, routing and navigation.

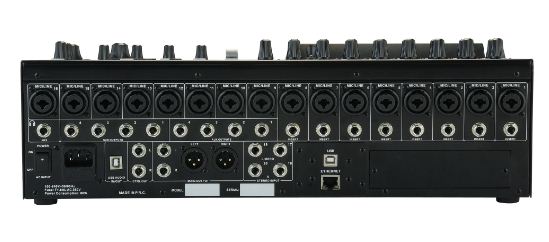

- XLR & Jack Main outputs & Stereo Control Room output.
