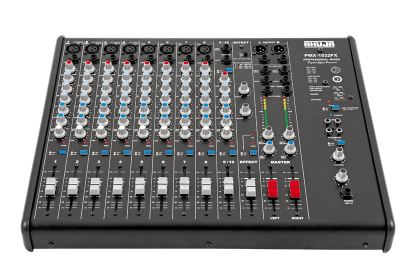

Ahuja PMX 1032FX Mixer (10 Channel)


    • Rs. 14,856
      Unit price per
    • Save Rs. 2,659
    Tax included. Shipping calculated at checkout.

    • Rugged, stable, high quality analog mixers with user-friendly construction & aesthetically designed side panels.
    • PMX-1032FX has 8 MIC/LINE Balanced Mono input channels and 1 STEREO Balanced input channel.
    • MIC/LINE Balanced Mono inputs with enhanced headroom.
    • All MIC inputs are through 3 pin F/XLR connectors and All LINE & STEREO inputs are through 6.3mm stereo phone jack sockets.
    • Four MIC inputs (MIC-1 to MIC-4) are available with 48V phantom supply which can be switched ON/OFF through a common switch.
    • STEREO Balanced input in two selectable sensitivities of -10dBu & +4dBu.
    • Separate EFFECT channel is provided for controlling the built-in digital effect processor through a delay selector switch and delay, repeat and level controls.
    • Each MIC/LINE channel has a GAIN control, 3 band active Equalizer controls, a Pre-fader AUX1 control, a Post-fader
    • AUX2 /EFX control & a PAN control.
    • Each Stereo channel has a GAIN control, 2 band active Equalizer controls, AUX1 Pre fader control, AUX2/EFX Post fader control and a BALANCE control.
    • Channel ON/OFF switch provided on each individual channel. Peak LED for signal clipping indication.
    • High precision 60mm slide fader on each channel.
    • Balanced Left & Right Line outputs through M/XLR connectors as well as 6.3mm stereo phone jack sockets.
    • Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
    • Two AUX SEND outputs with level controls: one each for monitoring and effects processing applications.
    • Two stereo AUX RETURN balanced inputs with level controls.
    • Headphone output with Level Control for output monitoring.
    • Stereo Tape Playback inputs through L&R RCA sockets provided with ON/OFF switch & level control.
    • Stereo Record output through L&R RCA sockets.
    • Operates on 240V 50Hz AC mains.
